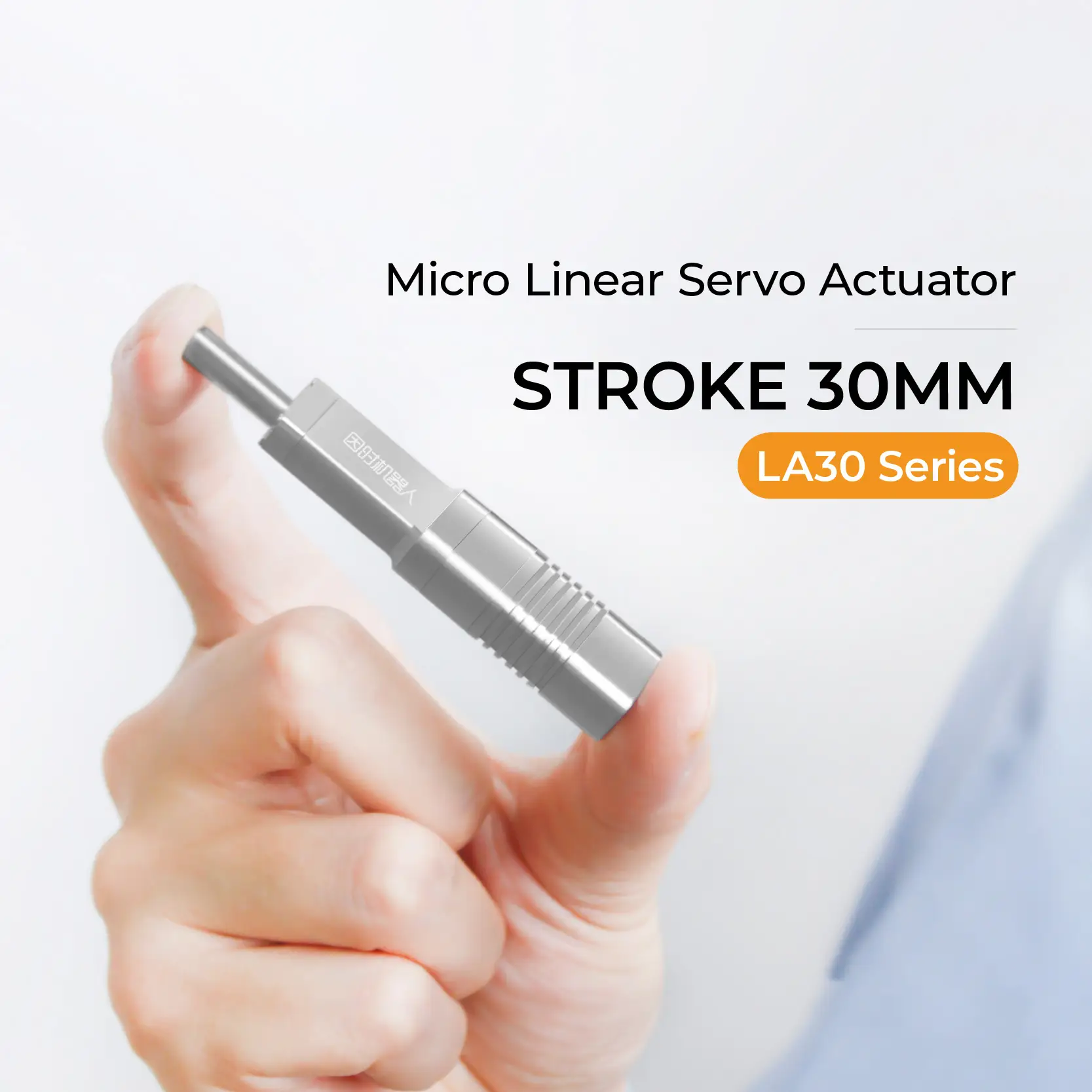

Finger‑sized with high‑precision position and velocity closed‑loop control.
| Standard Parameters | |||||||
| Stroke | Weight | Operating Voltage | Repeatability | Operating Temperature Range | Quiescent Current | Peak Current | IP level |
| 30mm | 30g | DC8V±10% | ±0.06mm | -10℃~+60℃ | 0.02A | 2A | IP40 |
| Speed Levels and Associated Parameters | ||||||
| Speed Level | Maximum Force | Locked‑Rotor Force | Maximum Self‑Locking Force | No‑load Speed | Full Load Speed | No‑Load Current |
| 02 | 50N | 80N | 80N | 17mm/s | 8mm/s | 0.30A |
