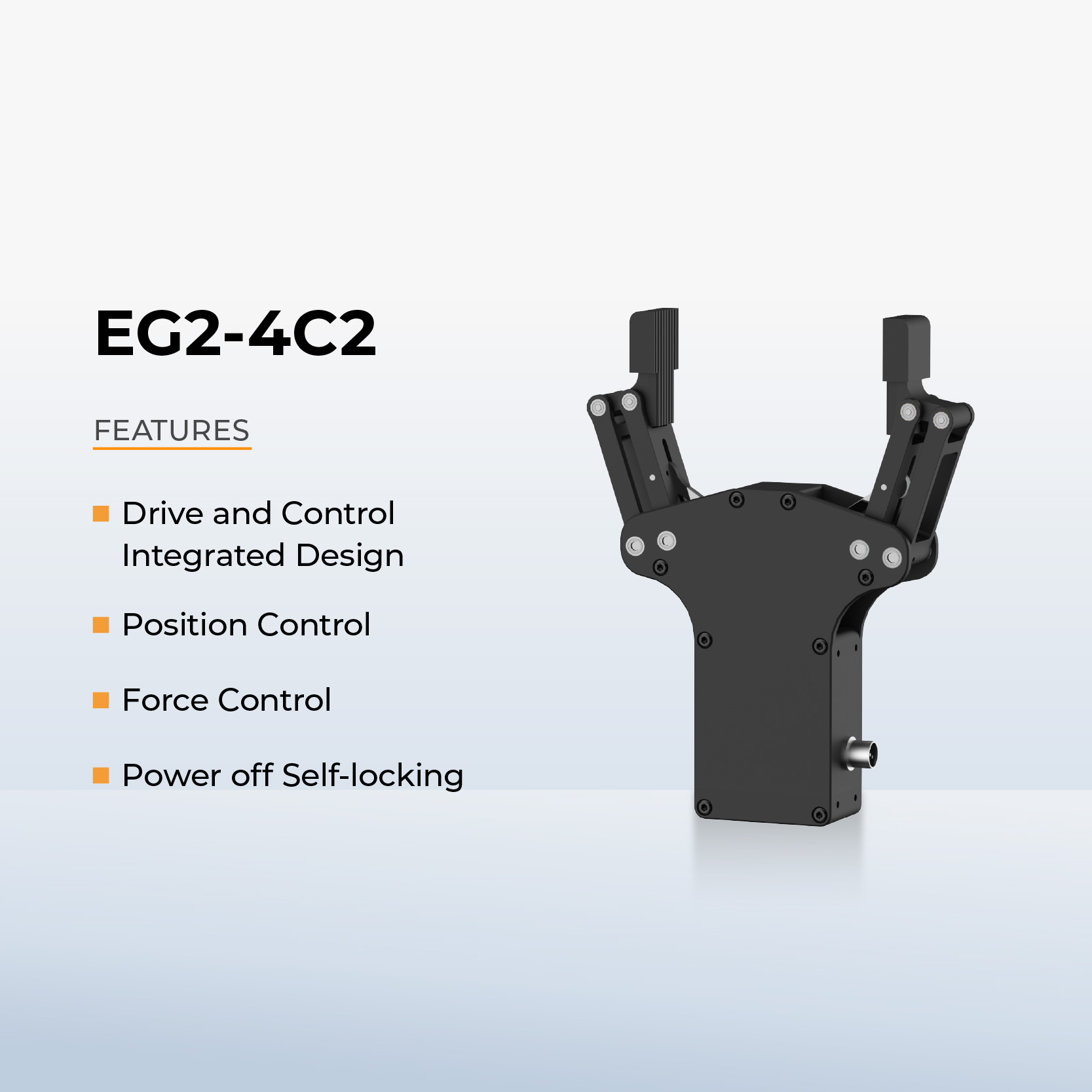

Equipped with force‑position dual control, power‑off self‑locking and drop detection, adaptable to multi‑industry automated operations
| Model | EG2‑4C |
| Communication interface | RS485 |
| Full stroke（both side） | 70mm |
| Weight | 231g |
| Grip force | 0‑20N |
| Force repeatability | ±1N |
| Operating voltage | DC24V±10% |
| Idling current | 30mA |
| Peak current | 0.70A |
| Positioning repeatability | ±0.50mm |
| Full stroke closing time | 1.3s |
| Unloaded current | 200mA |
| Protection level | IP40 |
| Recommended working temperature | 0‑40℃ |
| Maximum speed | 70mm/s |
