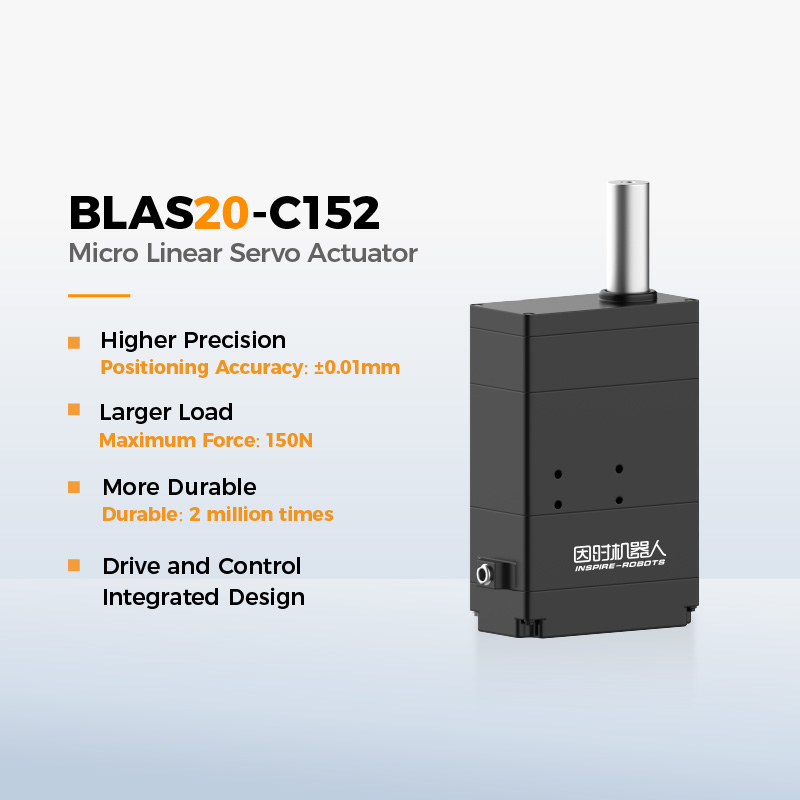

Dedicated industrial grade with high load capacity, high precision and long service life.
| Standard Parameters | |||||||
| Stroke | Weight | Operating Voltage | Repeatability | Operating Temperature Range | Quiescent Current | Peak Current | IP level |

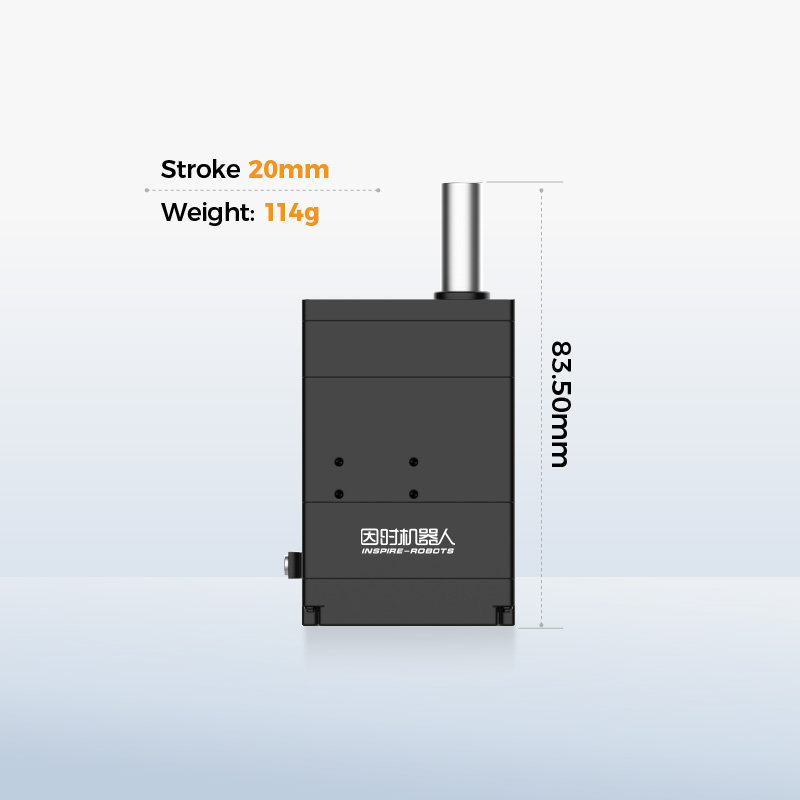

| 20mm | 114g | DC12V±10% | ±0.01mm | -10℃~+60℃ | 55mA | 2A | IP40 |
| Associated Parameters | |||||||
| Maximum Force | Locked‑Rotor Force | Maximum Self‑Locking Force | No‑load Speed | Full Load Speed | No‑Load Current | Communication interface | Motor |
| 150N | 200N | 70N | 8mm/s | 5mm/s | 400mA | RS485 | Coreless Brushless DC Motors |
